Product Description

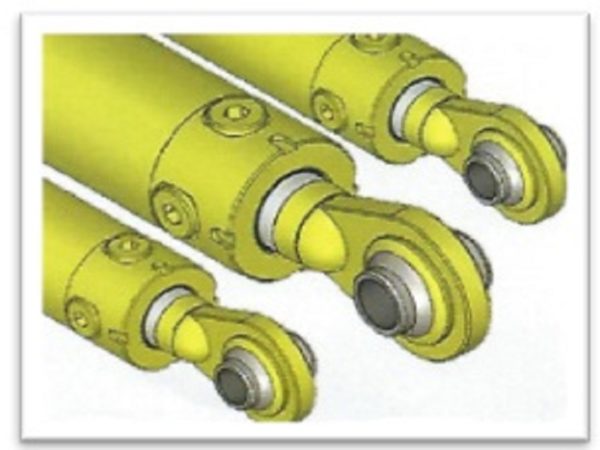

Double Acting 3 Point Link Cylinders

Specification:

Double acting 3 Point Link Cylinder
With 4 Ports in Cylinder for easy access.
Colour:
•  Industrial Gloss Black
•  Industrial Gloss Yellow
•  Graphite Grey

Working Pressure : 210 Bar – 3045 PSI
Cylinder Test Pressure : 315 Bar – 4568 PSI

Seals Maximum Operating Pressure and Conditions:

Seal arrangement in a machined steel end cap

• Pressures: 414 Bar – 6000 PSI
• Temperature: -30 Deg C to +110 Deg C
• Speed: 0.5 Metres per Second
• Shock and Load Holding Capacity
• Double Acting K-DAS piston seal providing positive
displacement under all rated pressure situations

Rod Material and Hardening:

Seals arrangement Rod Eye Side

• EN8D/C45 round bar
• Toughened and Induction Hardened
• Chrome Thickness: 20 to 30 microns hard chromed
piston rod for superior corrosion resistance

Tube Material:
• CDS ST52/E355 Steel Tube
• Seamless steel tube accurately honed to ensure smooth
operation and extended seal life
Gland Material:
• SG IRON SG500/7 Spheroidal Graphite Cast Iron,
tensile strength – 500N/mm^2
Piston, Front Clevis, Rear End:
• EN8D/C45 tensile strength – 650 N/mm^2

Double Acting 3 Point Link Cylinders Installation Dimensions
