Product Description

Alcaro Hydraulic Services are leading the way in innovative design and manufacture of Kerb Laying Machines.

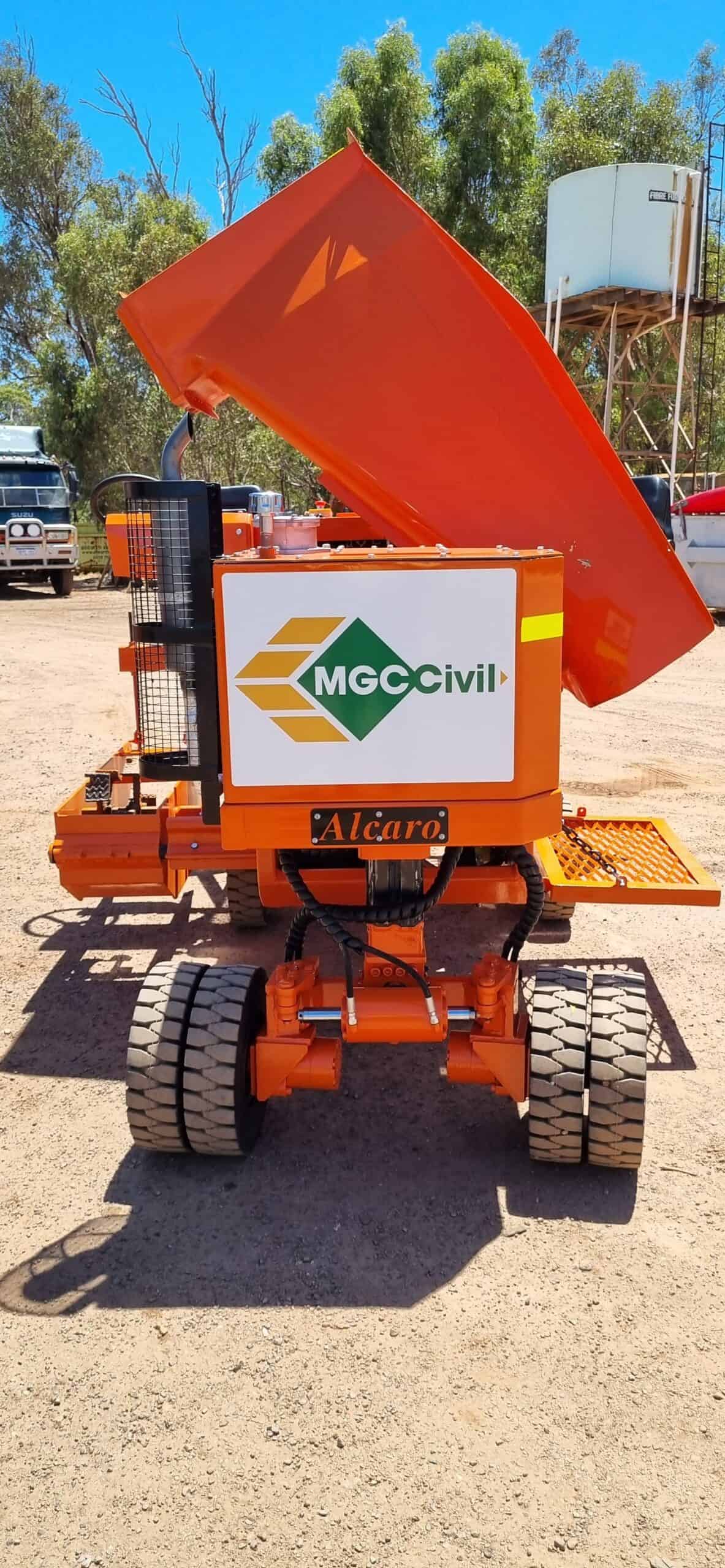

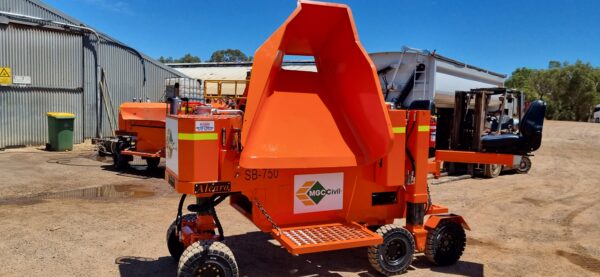

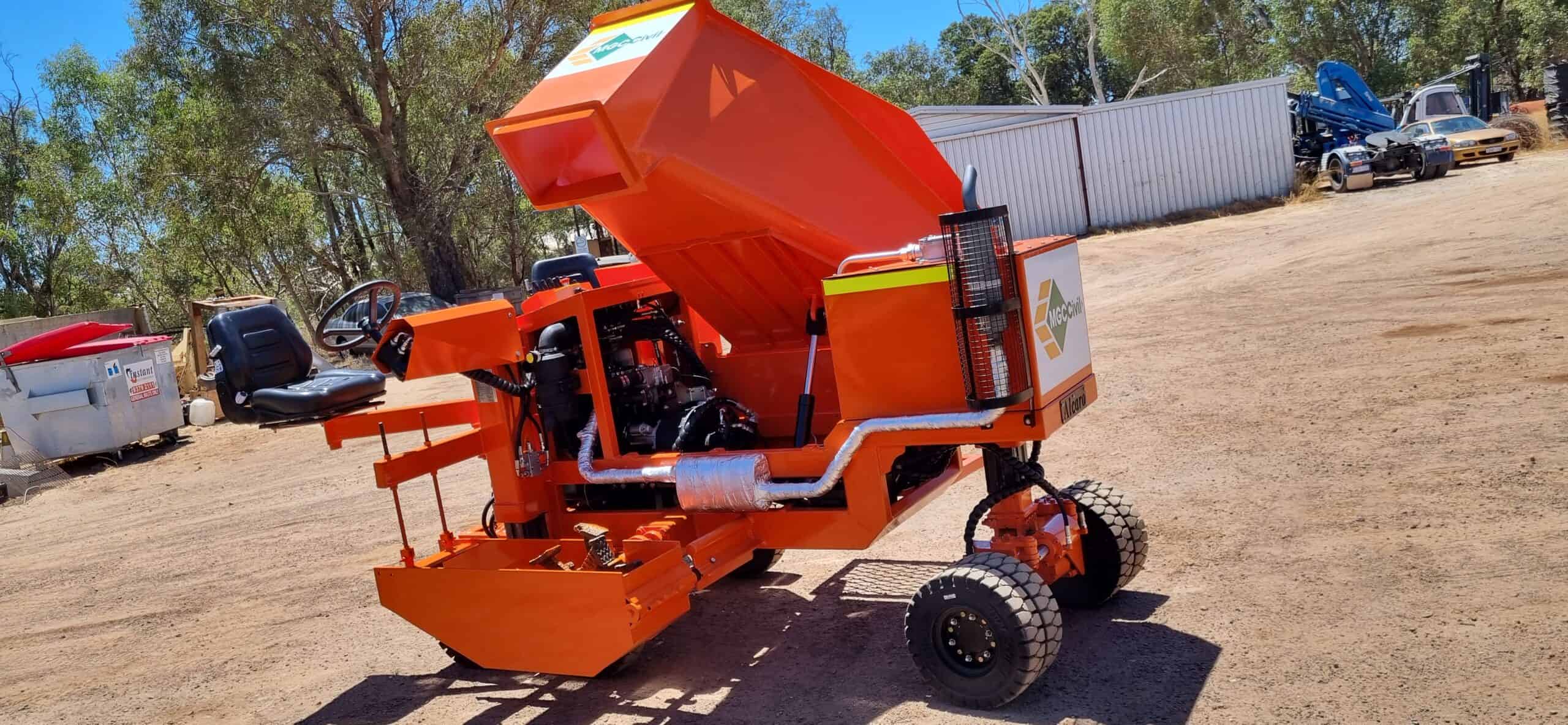

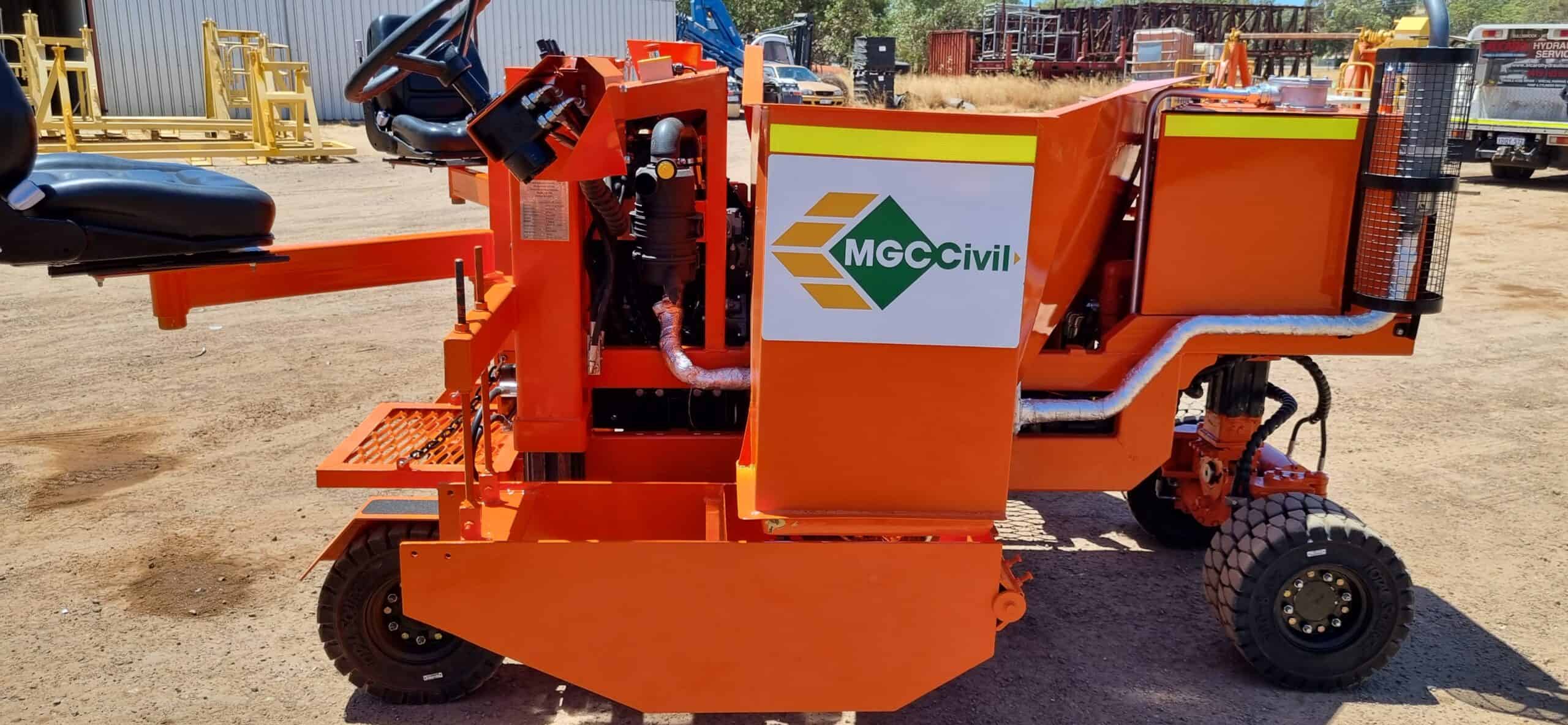

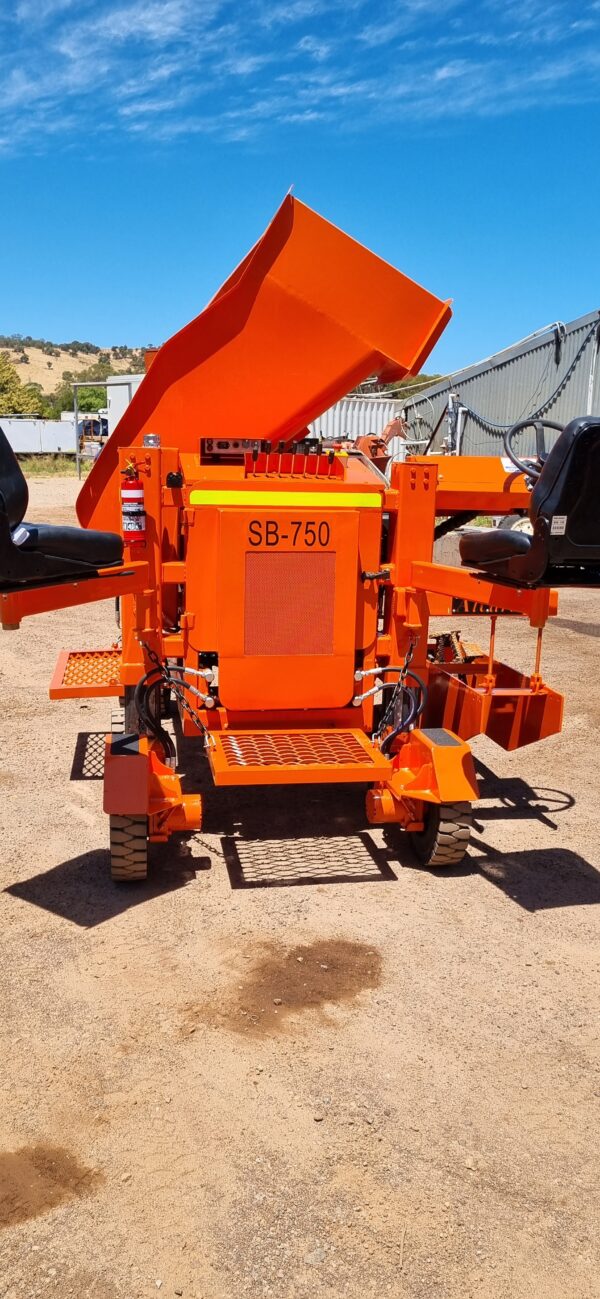

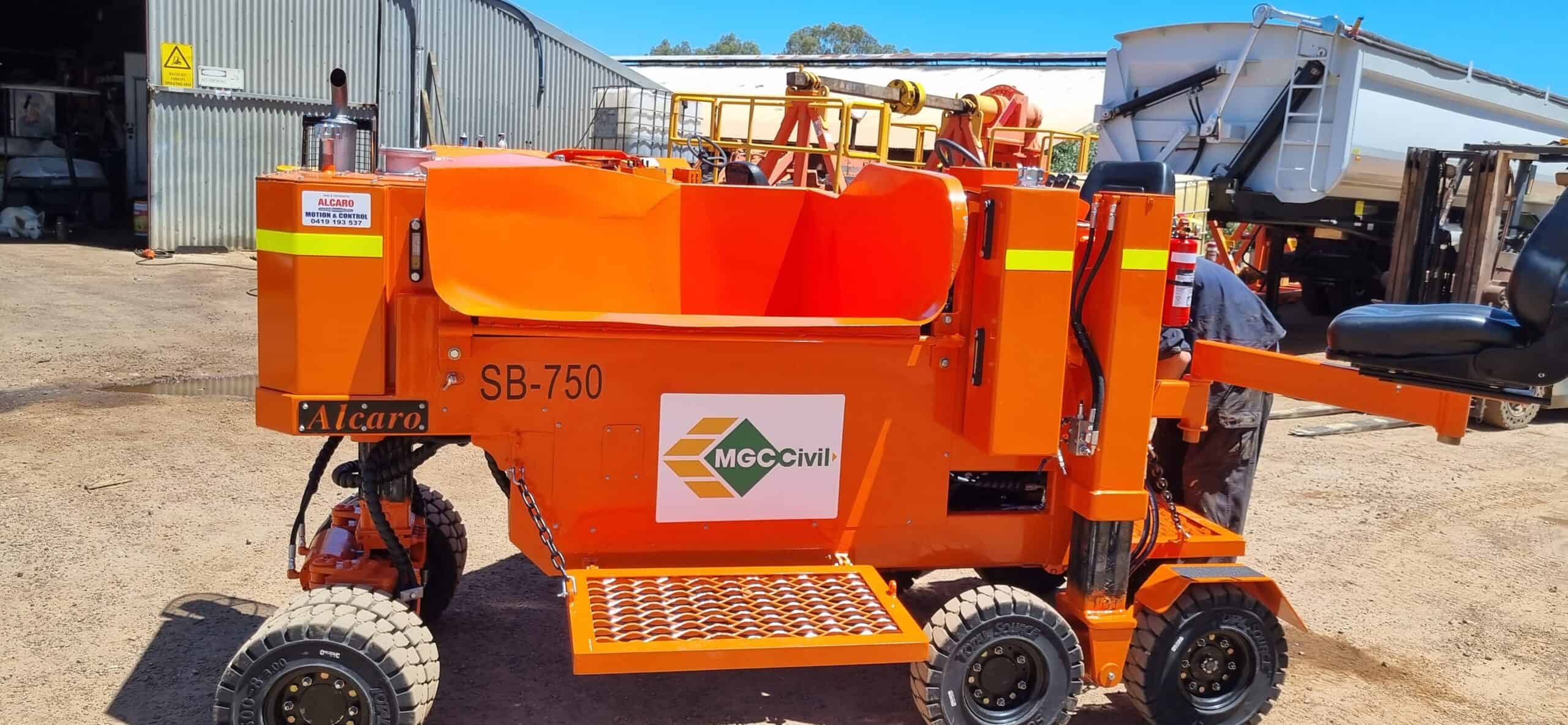

Alcaro SB750 Kerb Laying Machines with Perkins 403D-15 Engine for Sale

Contact us for more information.

Heavy Duty, quality construction, guarantees you superior function and reliability.

Alcaro SB750 Kerb Laying Machine Features:

• Fully proportional variable speed control
• True horse power controlled piston pump
• True 4WD capacity
• 4 way rotary flow divider
• Perkins – 403D-15 – GK65797
• Murphy shut down system
• Quiet operation
• 4 meter turning radius
• 2.5 Tonne Capacity
• Interchangeable profiles
• Front movement 250 mm height variation
• Rear movement 350 mm height variation
• Steering hydraulic load sensed
• Swivel seats

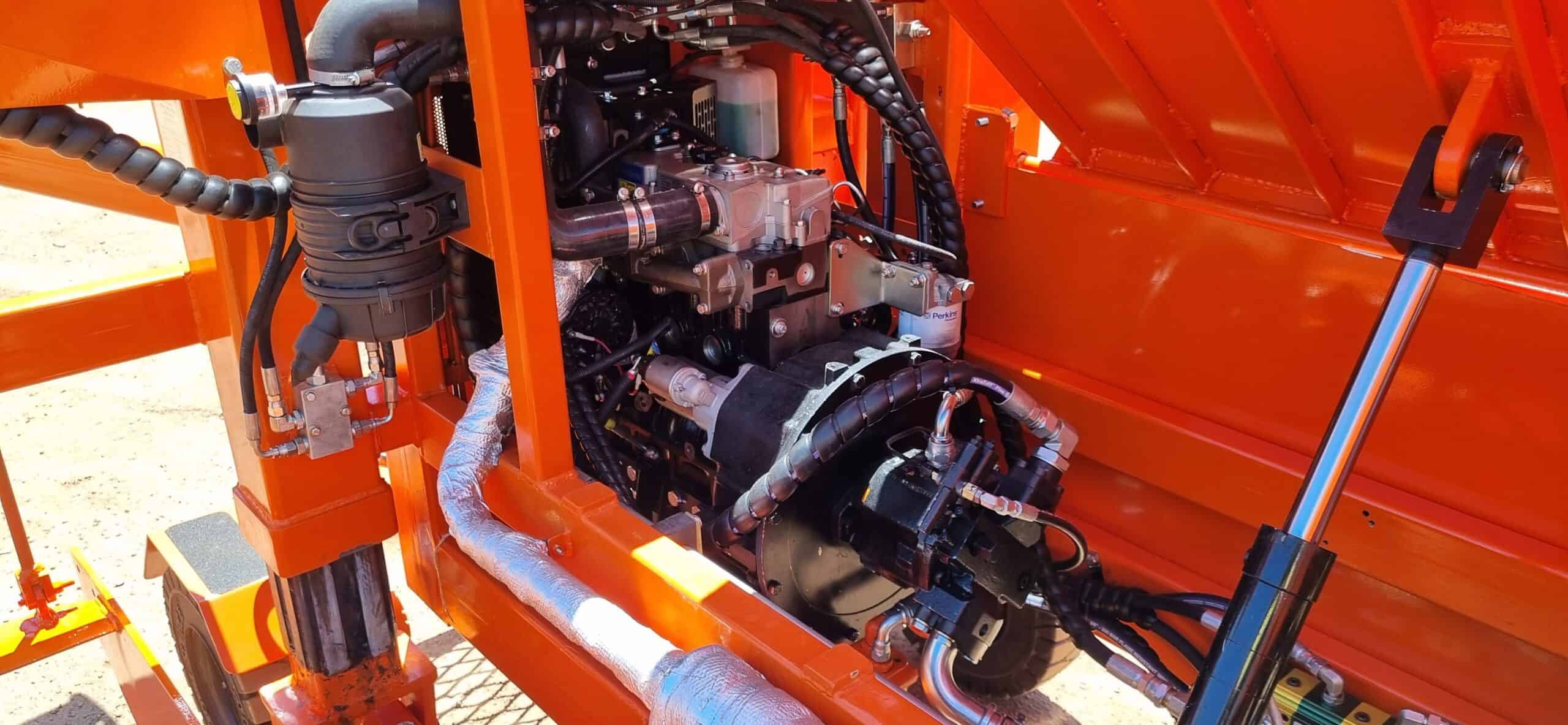

Perkins 403D-15 Turbo Charged Engine Specifications:

• Part # – D1105 TD
• Gross Intermittent Power – 23.25Kw/31Hp
• Max Speed – 3000 rpm
• Cylinders – 3
• Intake System – Turbo
• Emission Regulation – Tier 4
• Air Cleaner – Donaldson Dual Element Pre-cleaned

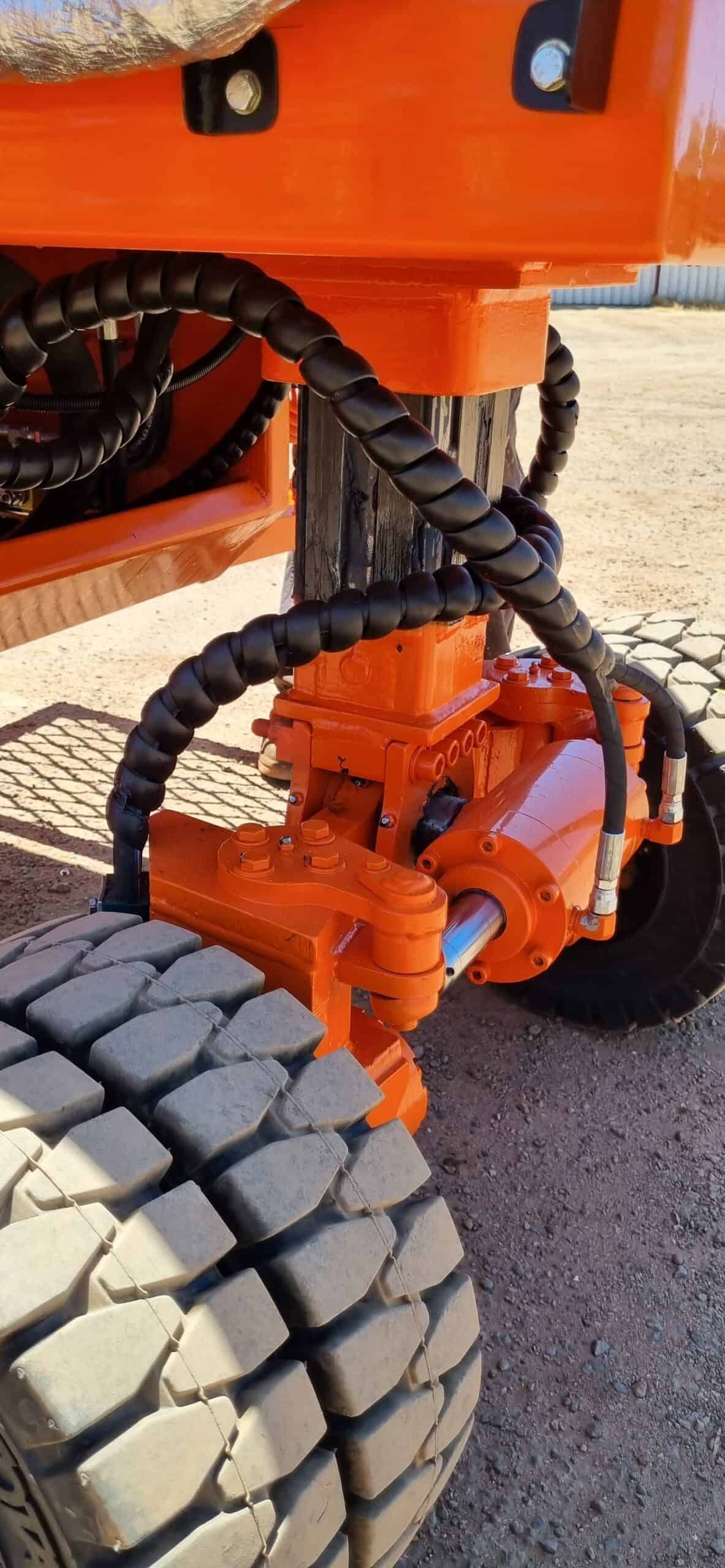

Wheel Motor Specifications:

• Max Torque – 921 Nm per motor x 4
• Max Speed – 42 rpm i.e. 4 kph
• Max Pressure – 3000 psi

Portability Options – Dimensions:

• Width Front – 750 mm
• Width Back (Incl Legs) – 1600mm
• Height Front – 1200mm
• Height Back – 1360 mm
• Length – 2555 mm
• Weight – 1.00 tonne
• Fuel capacity – 35 litres

The Alcaro SB750 kerb laying machine design can be customised to suit your unique specifications, capability and function requirements.

See the Alcaro SB750 kerb laying machine in operation:

Alcaro SB750 Kerb Laying machine in action

More Alcaro Kerb Laying footage.

We also manufacture the Alcaro CT900 Kerb Cutting machine
