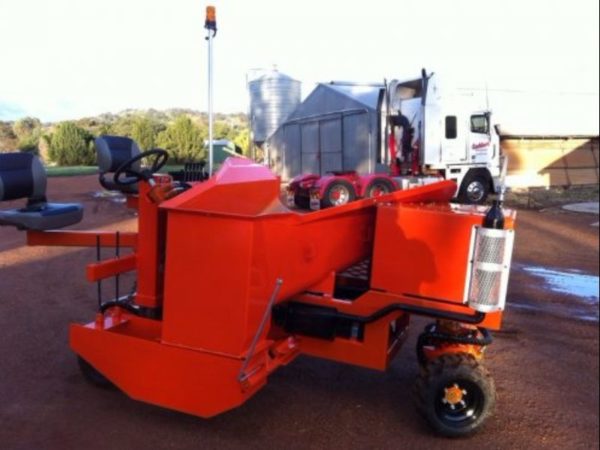

Alcaro SB748 Kerb Laying Machine

  • Description

    Product Description

    Alcaro Hydraulic Services are leading the way in innovative design and manufacture of Kerb Laying Machines.

    All SB748 Kerb Laying Machines for Sale or Hire

    Contact us for more information.

    Heavy Duty, quality construction, guarantees you superior function and reliability.

    Alcaro SB748 Kerb Laying Machine Features:

    • Fully proportional variable speed control
    • True horse power controlled piston pump
    • True 4WD capacity
    • 4 way rotary flow divider
    • Kubota D1105 turbo charged engine (31 Hp)
    • Murphy shut down system
    • Quiet operation
    • 4 meter turning radius
    • 2.5 Tonne Capacity
    • Interchangeable profiles
    • Front movement 250 mm height variation
    • Rear movement 350 mm height variation
    • Steering hydraulic load sensed
    • Swivel seats

    Kubota D1105 Turbo Charged Engine Specifications:

    • Part # – D1105 TD
    • Gross Intermittent Power – 23.25Kw/31Hp
    • Max Speed – 3000 rpm
    • Cylinders – 3
    • Intake System – Turbo
    • Emission Regulation – Tier 4
    • Air Cleaner – Donaldson Dual Element Pre-cleaned

    Wheel Motor Specifications:

    • Max Torque – 921 Nm per motor x 4
    • Max Speed – 42 rpm i.e. 4 kph
    • Max Pressure – 3000 psi

    Portability Options – Dimensions:

    • Width Front – 750 mm
    • Width Back (Incl Legs) – 1600mm
    • Height Front – 1200mm
    • Height Back – 1360 mm
    • Length – 2555 mm
    • Weight – 1.00 tonne
    • Fuel capacity – 35 litres

    The Alcaro SB748 kerb laying machine design can be customised to suit your unique specifications, capability and function requirements.

    See the Alcaro SB748 kerb laying machine in operation:

    Alcaro Kerb Laying Machine in action

    More Alcaro SB748 Kerb Laying machine in action

    And the final footage of the Alcaro SB748 Kerb Laying machine in action

    More Alcaro SB748 Kerb Laying Machine footage to come

    We also manufacture the Alcaro CT900 Kerb Cutting machine
