Product Description

Quick Couplings

QUICK RELEASE COUPLINGS

Valve Type Coupling

1/2″ only interchangeable according to ISO 7241-1 Part A
Standard couplings for general purpose applications with poppet valve shut-off system.
Connection/Disconnection under pressure: Not allowed.

Size,  Flow LPM and MWP Bar

NPT, SAE & Metric thread types available on request

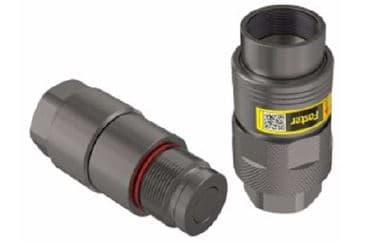

Flat-Faced Couplings

ISO 16028 Interchange, 35MPa Series. Supercedes 2FFI Series
Flate face couplings with real maximum working pressure of 35MPa (350 bar) and zinc nickel plating. Flat valve shut-off system contributes to prevent contamination and spillage.
Connection/Disconnection under pressure: Not allowed.

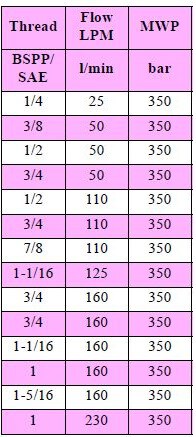

Size,  Flow LPM and MWP Bar

Flat-Faced Couplings

ISO 16028 Interchange. Supercedes 3FFI Series
Flat face couplings, real 35MPa (350 bar) max working pressure. Zinc-nickel plating.
Connection under pressure: Allowed residual.
Disconnection under pressure: Not allowed.

Size,  Flow LPM and MWP Bar

Flat-Faced Screw Together

Flat face, screw on type couplings. Resistant to pressure peaks (hammer circuits).
Connection/Disconnection under pressure: Not allowed.

Size,  Flow LPM and MWP Bar

Flat-Faced Screw Together

Screw on flat face couplings, suitable for construction equipment and heavy duty applicatoins. No hose torsion during connection/disconnection thanks to internal bearing system. Equipped with a safety sleeve to prevent accidental disconnections due to vibrations.
Connection by hand up to 35MPa residual pressure in the male half.
Disconnection under pressure: Allowed.

QUICK RELEASE COUPLINGS – SUNDRIES

PVC Dust Plug & Caps to suit NV couplings

Aluminium Dust Plugs & Caps to suit VV couplings
Dust Covers to suit FFH, 3FFH series

Sizes Available : 1/4″, 3/8″, 1/2″, 3/4″, 1″

TMV & TFV Dust Caps and Plugs

To suit VV series couplings.

Sizes Available : 1/4″, 3/8″, 1/2″, 3/4″, 1″
