Belt Winders Standard Range

  • Description

    Product Description

    Dynamic Motion Control

    Our Standard Range

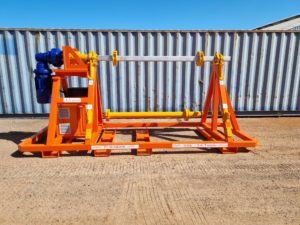

    5 Tonne Winder

    • Max torque 10,000 Nm
    • Max speed 5 rpm
    • Max belt dia – 2400 x width -1800
    • Power 7.5 Kw – 20 amp plug
    • Unit Dimensions
    • L=4300, W = 1400, H = 1500
    • Weight = 1.5 Tonnes

    7 Tonne Winder

    • Max torque 13,000 Nm
    • Max speed 5 rpm
    • Max belt dia – 3000 x width -1800
    • Power 11 Kw – 20 amp plug
    • Unit Dimensions
    • L=4500, W = 1700, H = 1800
    • Weight = 2.0 Tonnes

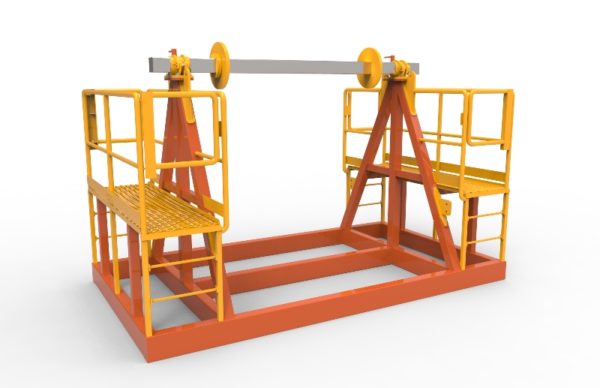

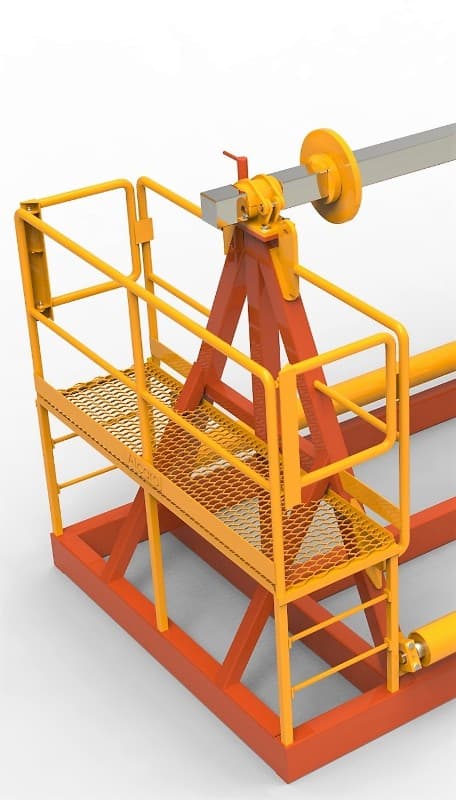

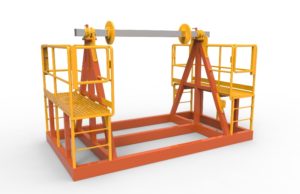

    Strorage stand – various sizes

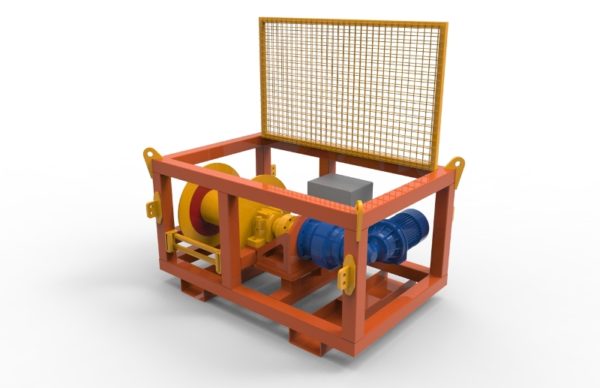

    7 Tonne Winch

    • Max torque 13,000 Nm
    • Max speed 5 rpm
    • Power 11 Kw – 20 amp plug
    • L=1400, W = 1600, H = 900
    • Weight = 1.0 Tonnes

    10 Tonne Winder

    • Max torque 26,000 Nm
    • Max speed 5 rpm
    • Max belt dia – 3000 x width -1800
    • Power 15 Kw – 32 amp plug
    • Unit Dimensions
    • L=4500, W = 2220, H = 2400
    • Weight = 3.5 Tonnes

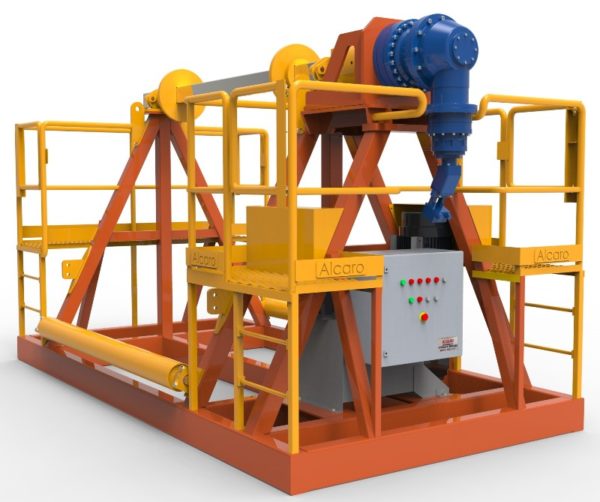

    15 Tonne Winder

    • Max torque 40,000 Nm
    • Max speed 5 rpm
    • Max belt dia – 3000 x width -1800
    • Power 22 Kw – 50 amp plug
    • Unit Dimensions
    • L=4900, W = 2400, H = 2400
    • Weight = 4.0 Tonnes

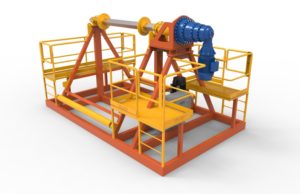

    25 Tonne Winder

    • Max torque 118,000 Nm
    • Max speed 5 rpm
    • Max belt dia – 5000 x width -2400
    • Power 55 Kw – 98 amp
    • Unit Dimensions
    • L=5500, W = 3000, H = 3400
    • Weight = 5.0 Tonnes

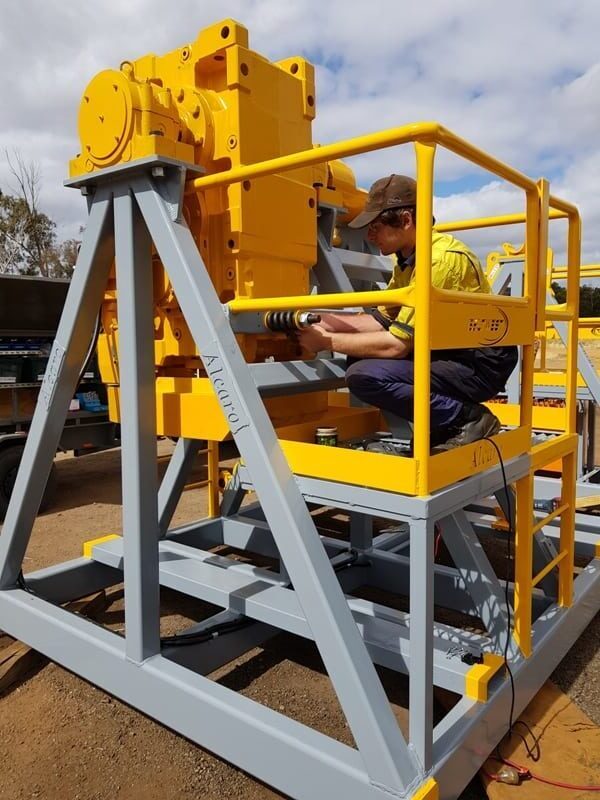

    Special Builds up to 50 Tonne!

    Braked Tail Units

    • 25 Tonne
    • 15 Tonne
    • 10 Tonne
    • 7 Tonne
    • 5 Tonne



    Certified Lifting Lugs, Tie Down Points with self closing gates



    Variable speed with remote control and dual emergency stop

    NEW – Positive locking centralising rings

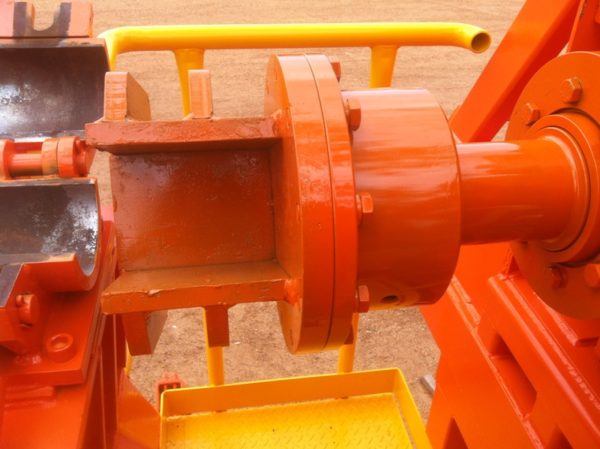

    3 sided chuck with lock down split for ease of access

    All Units For Sale

    Contact us for more information.

    All units for hire

    Contact us for hire rates



    .
